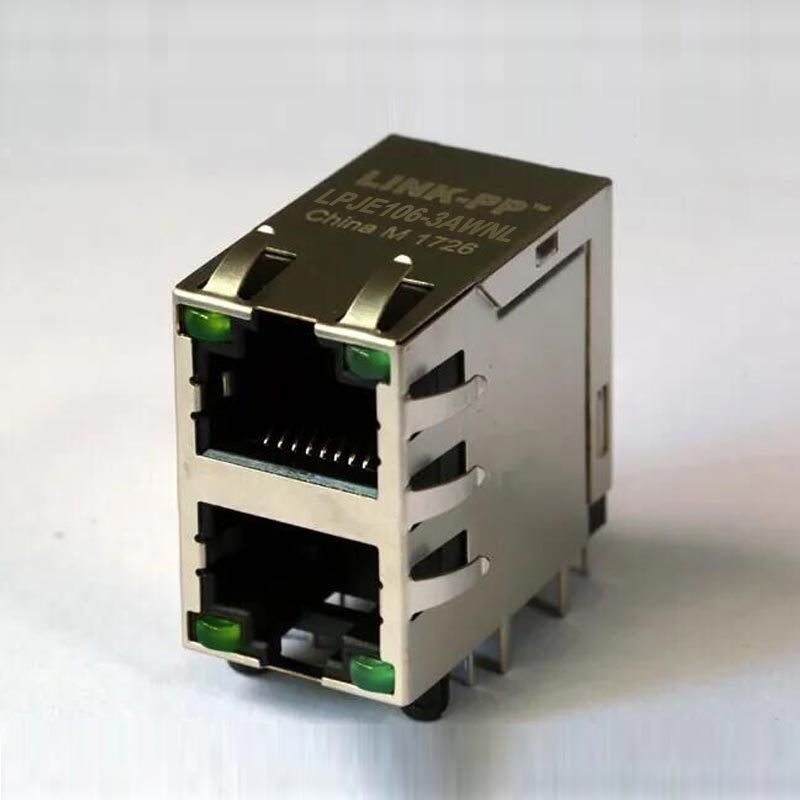

LPJE106-3AWNL Shielded 2x1 RJ45 PCB Jack Double Deck Gang with LED

Name: LPJE106-3AWNL Shielded 2x1 RJ45 PCB Jack Double Deck Gang with LED
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: XRJD-S-21-8-8-5
Price: 4.20 USD
Availability: InStock

Szczegóły Produktu

Miejsce pochodzenia: Chiny

Nazwa handlowa: LINK-PP

Orzecznictwo: UL,RoHS,Reach,ISO

Numer modelu: XRJD-S-21-8-8-5

Warunki płatności i wysyłki

Minimalne zamówienie: 50/500/1000/60K

Cena: $2.2-$8

Szczegóły pakowania: Taca

Czas dostawy: Na statku magazynowym w ciągu 3 dni

Zasady płatności: TT, Net30/60/90 dni

Możliwość Supply: 180K/miesiąc

Uzyskaj najlepszą cenę

Szczegóły Produktu

Opis produktu

Podkreślić:
                                                                                                                                                                                                                                                                                    Shielded RJ45 PCB Jack, Double Deck RJ45 Jack, RJ45 Jack with LED


Numer części:	LPJE106-3AWNL	Typ produktu:	Dwupokładowe gniazdo PCB typu gang
Liczba portów:	2x1	Zatrzask:	W górę i w dół
Liczba pozycji/styków:	8p8c	Typ mocowania:	Tht
Opcja LED:	Z	Wskaźniki EMl:	Z
Metalowa tarcza:	Osłonięty	Orientacja:	Kąt prosty (wejście boczne)

Numer części:	LPJE106-3AWNL
Typ produktu:	Dwupokładowe gniazdo PCB typu gang
Liczba portów:	2x1
Zatrzask:	W górę i w dół
Liczba pozycji/styków:	8p8c
Typ mocowania:	Tht
Opcja LED:	Z
Wskaźniki EMl:	Z
Metalowa tarcza:	Osłonięty
Orientacja:	Kąt prosty (wejście boczne)

LPJE106-3AWNL Shielded 2x1 RJ45 PCB Jack Double Deck Gang with LED

The LPJE106-3AWNL double deck gang PCB jack features a shielded 2x1 design with 8P8C contacts, green LEDs, EMI finger, and 6u" gold plating. Engineered for high-density Ethernet applications requiring reliable performance and space efficiency.

Product Overview

The LPJE106-3AWNL DOUBLE DECK GANG PCB JACK is a shielded 2x1 stacked modular jack designed for compact, high-density network hardware and Ethernet connectivity applications. With 8P8C contacts, green/green LEDs, EMI finger support, and 6u" gold plating, this component ensures stable signal connection, mechanical durability, and reliable long-term performance.

Ideal for designing switches, routers, industrial communication devices, and other network equipment, the LPJE106-3AWNL offers a practical PCB jack solution with strong electrical performance and a robust shielded structure.

Key Characteristics

Part Number: LPJE106-3AWNL
Product Type: Double deck gang PCB jack
Port Configuration: 2x1 stacked design
Contact Arrangement: 8P8C
LED Color: Green / Green
Shielding: Shielded
EMI Finger: With EMI finger
Gold Plating: 6u" gold plating
High Durability: 750 mating cycles minimum
UL Certified: File Number E484635

The stacked 2x1 port layout helps save board space while supporting dense connector placement, making it well suited for space-constrained PCB designs.

Product Advantages

Compact double deck gang form factor
Shielded design for improved EMI protection
EMI finger included for enhanced grounding support
8P8C modular interface for Ethernet applications
6u" gold plating for better contact reliability
Built for long service life and repeated mating cycles
UL certified for added confidence in product compliance

Electrical Specifications

Parameter	Specification
Voltage Rating	125V AC
Current Rating	1.5A
Contact Resistance	30 mΩ max
Insulation Resistance	500 MΩ min @ 500V DC
Dielectric Strength	1000V AC, 50Hz or 60Hz, 1 minute

PC Board Layout

Mechanical Specifications

Parameter	Specification
Insert Material	PBT UL94V-0
Contact Material	∅0.46mm C51000 (QSn4-0.3) phosphor bronze, gold plating over nickel
Contact Finish	Gold flash
Shield Material	0.20mm H65Y brass, nickel plated
Mating/Unmating Force	2.2 kg.f max
Retention Strength	3.0 kg.f min between jack and plug
Operating Life	750 cycles min

The use of PBT UL94V-0 material and a nickel-plated brass shield improves safety and durability, while the gold-plated contacts support consistent electrical contact over repeated use.

Environmental Specifications

Parameter	Specification
Storage Temperature	-40℃ to +85℃
Operating Temperature	-40℃ to +85℃
Wave Solder Tip Temperature	250℃ for 5 sec
UL Certification	File Number E484635

Frequently Asked Questions

If you are looking for a LPJE106-3AWNL double deck gang PCB jack, this shielded 2x1 stacked PCB jack provides a dependable combination of 8P8C connectivity, green/green LEDs, EMI finger protection, and 6u" gold plating. It is a practical choice for high-density Ethernet designs that require durability, shielding, and stable electrical performance.

1. What is the LPJE106-3AWNL?

The LPJE106-3AWNL is a double deck gang PCB jack with a shielded 2x1 design, intended for network and Ethernet-related PCB applications.

2. What does 2x1 mean in this connector?

2x1 refers to a stacked port configuration with two connector positions arranged in a compact layout, helping save PCB space.

3. Is the LPJE106-3AWNL shielded?

Yes. The LPJE106-3AWNL is a shielded PCB jack and also includes an EMI finger.

4. What contact type does it use?

It uses an 8P8C contact arrangement, which is commonly associated with Ethernet modular connectors.

5. What is the plating on the contacts?

The contacts feature 6u" gold plating for improved conductivity and contact reliability.
